ACE AF1 TRUCKS

ACE TRUCK CO. AF1 TRUCKS

AF1 TRUCKS  - MULTIPLE SIZES & COLOURS

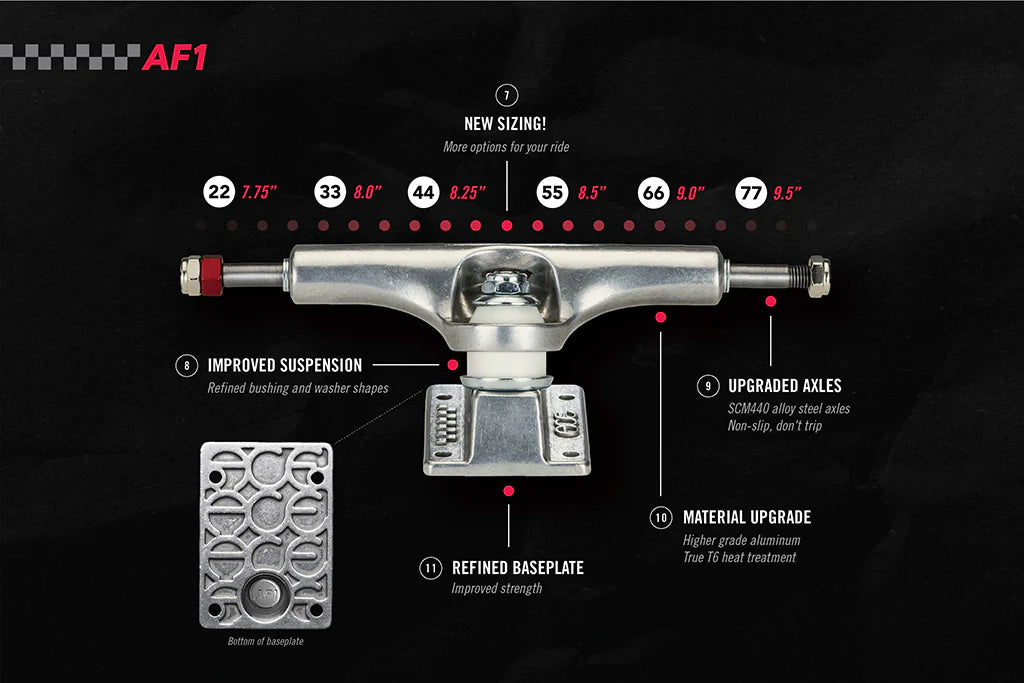

The all-new ACE AF1 features game-changing performance without deviating from our original Ace geometry. The AF1 is carefully manufactured using our proprietary casting process. Years in development, the ACE AF1 has a 70% increase in the aluminum’s structural integrity, making it the strongest cast truck on the market. We updated the sizing on the 44 thru 77 models for a better fit across multiple board widths.

-  Hanger width: 5.6” (143mm)
-  Truck height: 2.1” (53mm)
-  Manufactured with high-quality AA 356.2 alloy using our own proprietary casting -  method
-  True T6 heat-treated baseplates and hangers
-  SAE 4140 steel alloy axles, oversized to eliminate bearing wobble
-  Patent pending rethreading axle nuts - no more damaged axle ends
-  Durable Hand-poured 96a urethane pivot bushings for better response
-  Refined suspension for a cleaner turn
-  Top Bushing: 12mm tall | 91a hardness
-  Bottom Bushing: Bottom 14mm tall | 86a hardness
-  Machine-faced hanger ends for precise bearing contact
